Transducer Prototyping and Production
We have skilled workers and professional technicians to :
• Assembly of complete transducers with matching and backing layers, including production of calculated matching layer material properties
• Production of complete interconnected transducers arrays, assembly into housings with attenuating potting materials, including lenses
• Test the transducer and probe
Probe type | Feature | Application | Central frequency | Element | Radius of curvature | Main Product | |
---|---|---|---|---|---|---|---|
![]() Linear type |
![]() wide footprint and keep same field of view at deep part. |
6.0MHz | 12.0MHz |
128ch | 256ch |
- | 9MHZ 12MHZ 16MHZ |
- | |

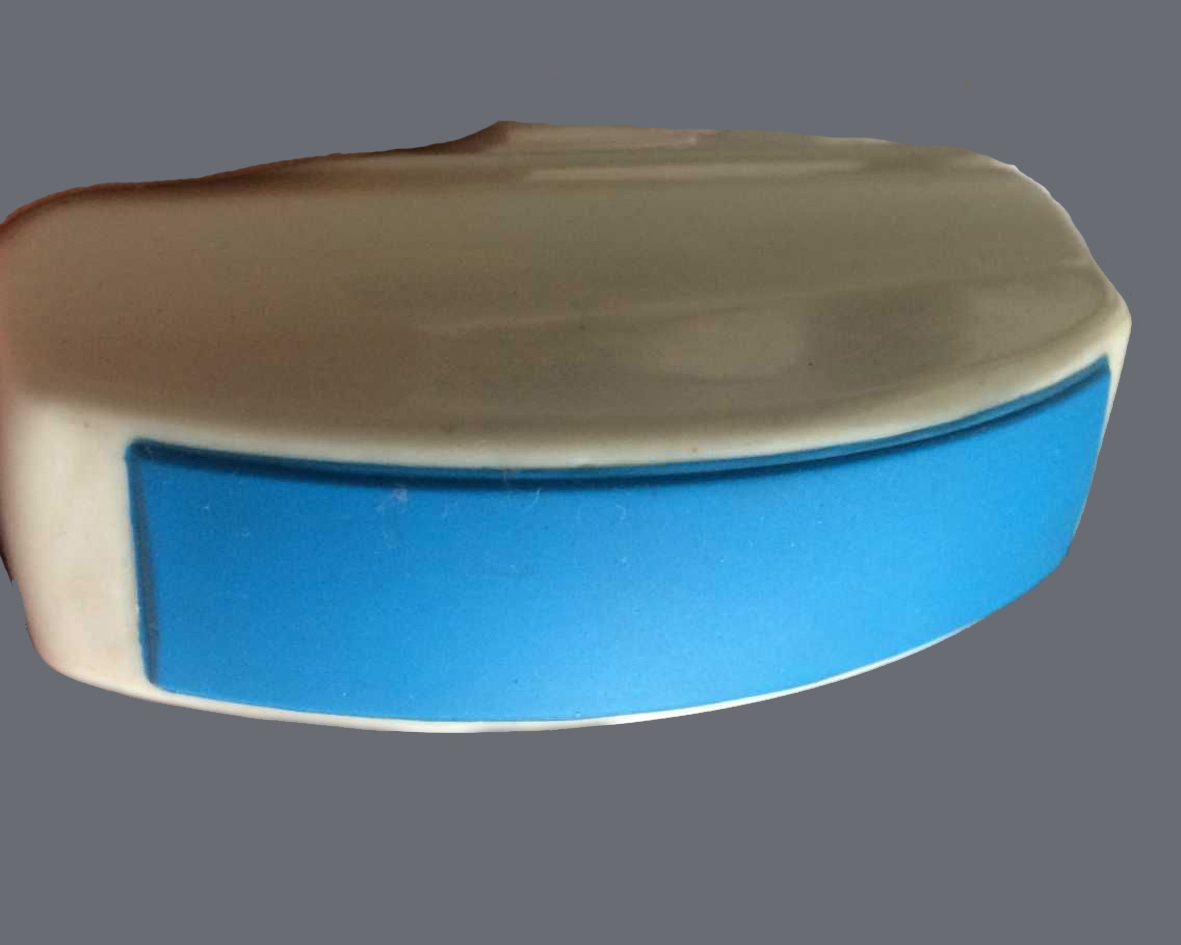

![]() Convex(Curved) type |
![]() wide footprint, field of view will be spreaded at deep part. |
|
3.0MHz | 6.0MHz |
128ch | 256ch |
40mm - 50mm - 60mm |
3MHZ 3.5MHZ 4MHZ |
- |
![]() Endocative type |
![]() A) The measurement of distance. B) B mode scanning by mechanical rotation. |
|
5.0MHz | 8.0MHz |
128ch | 256ch |
8mm | 13mm |
6.5MHZ | 128element 192element |
![]() Sector type |
![]() small footprint, field of view will be spreaded widely at deep part. |
|
2.0MHz | 7.5MHz |
32ch | 128ch |
- | 3MHZ 5MHZ 7MHZ |
- |
